| Specifications |
| Input numbers | 6, 12, 18, 24, 30, 36, 42, 48 channels |
| True universal inputs | Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391)Cu10 (α=0.00427), Cu50, Cu100(α=0.00426, 0.00428), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV |
| The fastest sampling rate | o reach 100 msec / dot, default setting at 1 sec / dot |
| Math, External channels, Batch, Custom display, FDA 21 CFR part 11 | Math in standard version, others in Plus versions |

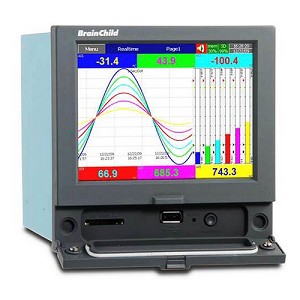

| Display | 12.1" TFT touch screen |
| Resolution | 1024 x 768 |
| MTFB backlight at 25°C | 60,000 hrs |
| Backlight | LED |
| Screen saver, Email | Yes |
| A faster CPU | ARM Cortex-A8, 1Ghz |
| Internal flash memory | 256 MB |
| RAM | 256 MB |
| Ethernet | Modbus TCP/IP |
| RS-232/422/485 | Optional RS-232 or RS-422/485 Modbus RTU |
| SD card slot, USB host x 2 | Standard, one USB in the front, another USB in the back |
| Pulse input | Optional DI card offering either logic or high frequency pulse counter |
| START / STOP key | To start / stop record and to turn off the display only, not recorder itself so that a quick start possible |
| Calibration correction | On-site calibration possible, or using handy features of Offset and Gain for correction |
| Multilingual | Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable |
| PC software Historical Viewer+ Configuration | Standard |
| Extensive software Data Acquisition Studio | Optional real-time monitoring |
| Power supply | 90-250VAC or 11-36VDC |
| Outer dimensions (W x H x L mm) | 288 x 288 x 189 |
| Shorter mounting depth (mm) | 171 |
| DIN panel cutout (W x H mm) | 281 x 281 |
| Protection | IP65 front, IP20 rear |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -30°C to 70°C |
| Safety standards | RoHS |
